§ TECHNOLOGY · FOUR TECHNOLOGIES. ONE CERTIFIED PROMISE.

The Technology Behind the Light.

UniPower™ universal battery. VoltShield™ low-voltage protection. TrueBeam™ zero-flicker engine. SteadyLume™ lumen maintenance. Four engineered systems, every unit, every certification.

Four Technologies. One Certified Promise.

How DAYATECH Works.

Every DAYATECH work light ships with four engineered systems. Each one is verifiable. Each one is documented. Below: how they work, what they measure, and why they matter on a job site.

UNIPOWER

UniPower™ · Universal Battery Compatibility

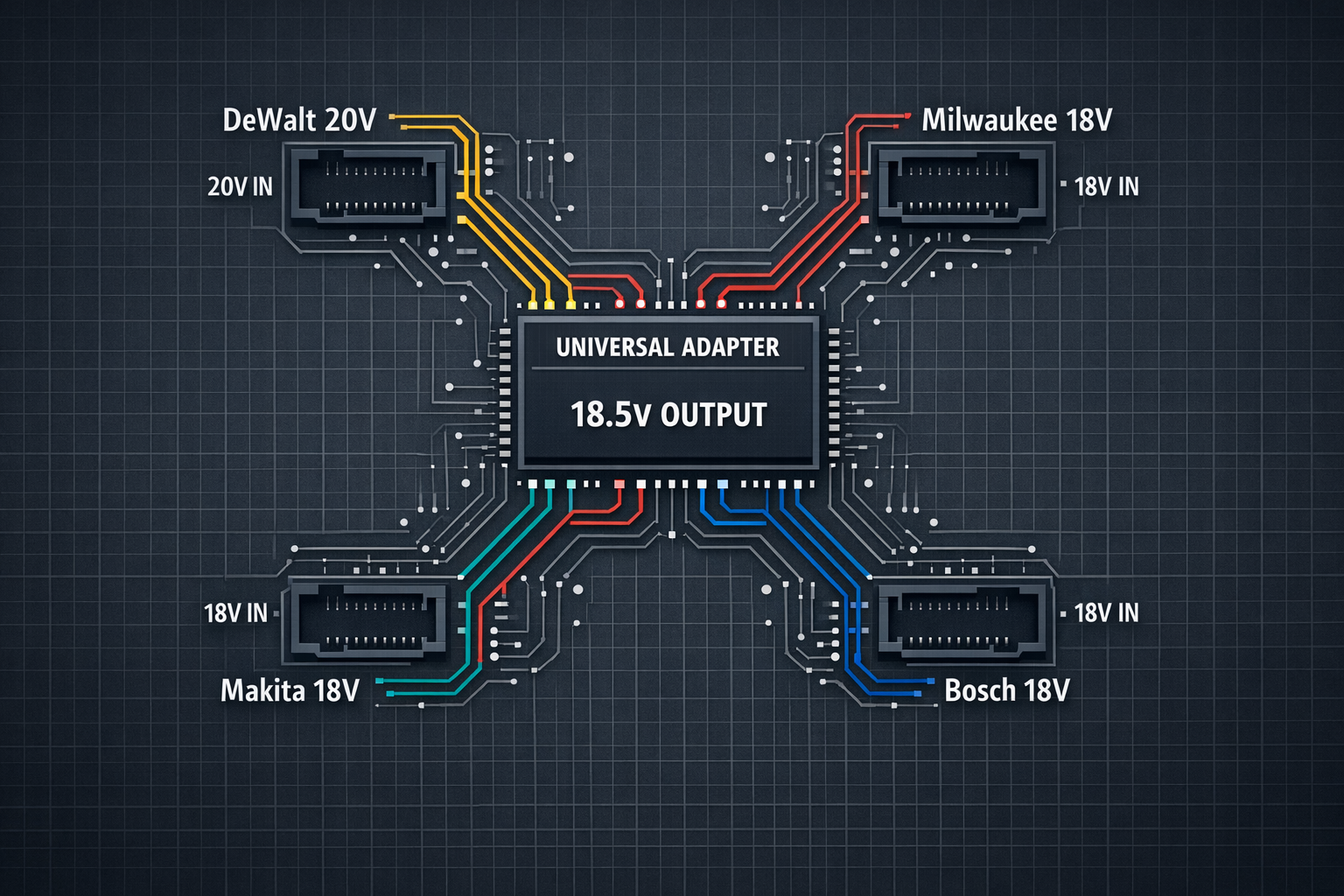

One Light, Any Battery. A patented mechanical-electrical adapter system that runs one DAYATECH work light on the four premium cordless battery platforms without any external adapter, modification, or voltage conversion.

How It Works

  1. Mechanical Interface Layer — A universal dovetail slot with spring-loaded retention clips accepts the physical form factors of DeWalt (20V MAX), Milwaukee (M18), Makita (LXT 18V), and Bosch (18V CORE) packs. No tool, no adapter sleeve.
  2. Smart Contact Bridge — A dual-contact brass terminal assembly auto-aligns with each brand's positive/negative terminal spacing. Spring tension guarantees contact pressure above 0.8N, beyond the 0.5N minimum for stable current delivery at full load.
  3. Voltage Normalization Circuit — Accepts nominal input between 18V and 21.6V. An active regulator converts all inputs to a stable 18.5V internal rail, so battery choice never affects light output or runtime curves.
UniPower™ · Universal Battery Compatibility engineering diagram

Why It Matters

Every contractor's truck already has batteries — usually the brand they picked five years ago. A $200 work light that forces you to buy another $120 battery isn't a tool purchase. It's a tax on you. UniPower™ kills that tax. Bring the battery you already own. The light works.

VOLTSHIELD

VoltShield™ · Low-Voltage Battery Protection

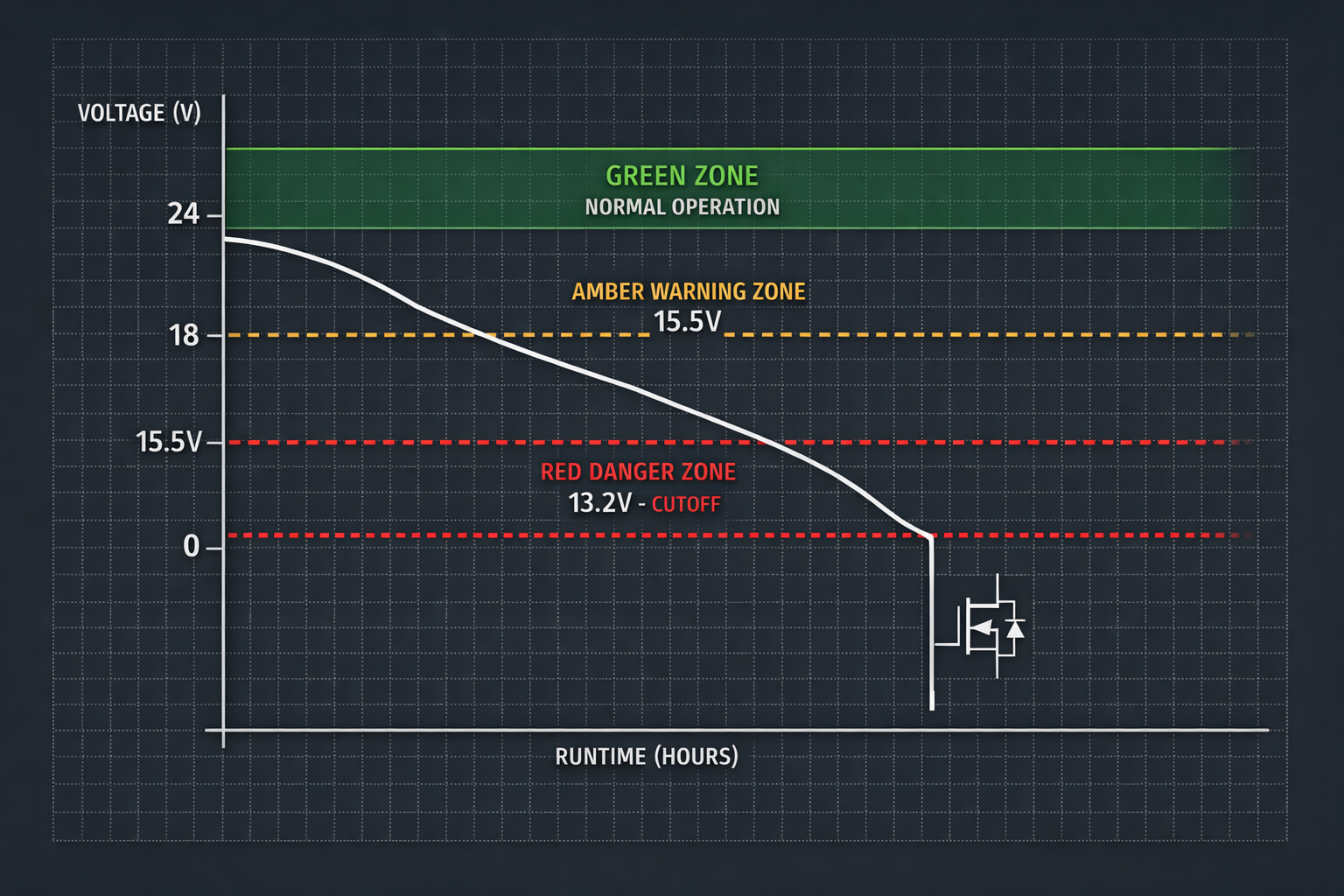

Smart Cut-off. Zero Damage. An integrated low-voltage detection and disconnect circuit that shuts the light off before a Li-ion pack drains below its safe discharge threshold.

How It Works

  1. Continuous Voltage Monitoring — A low-power comparator IC samples battery voltage every 500ms across the full runtime. Sampling draws under 50μA, negligible compared to LED load current.
  2. Three-Stage Warning + Cut-off — At 15.5V (≈3.1V/cell) the indicator turns amber. At 14.4V (≈2.9V/cell) output auto-dims 50%. At 13.2V (≈2.65V/cell) the MOSFET disconnects the pack completely.
  3. Load Disconnect MOSFET — A physical high-current transistor, not a software fuse. Once triggered, the circuit opens — guaranteed disconnect even under failure conditions.
VoltShield™ · Low-Voltage Battery Protection engineering diagram

Why It Matters

A DeWalt 20V MAX 5.0Ah battery costs $139. Run a standard work light to full drain five times and that battery is toast. VoltShield™ doesn't extend runtime; it extends battery life. Your batteries survive hundreds of cycles instead of dozens, because the light knows when to stop.

TRUEBEAM

TrueBeam™ · Flicker-Free, Anti-Glare, High-CRI Light

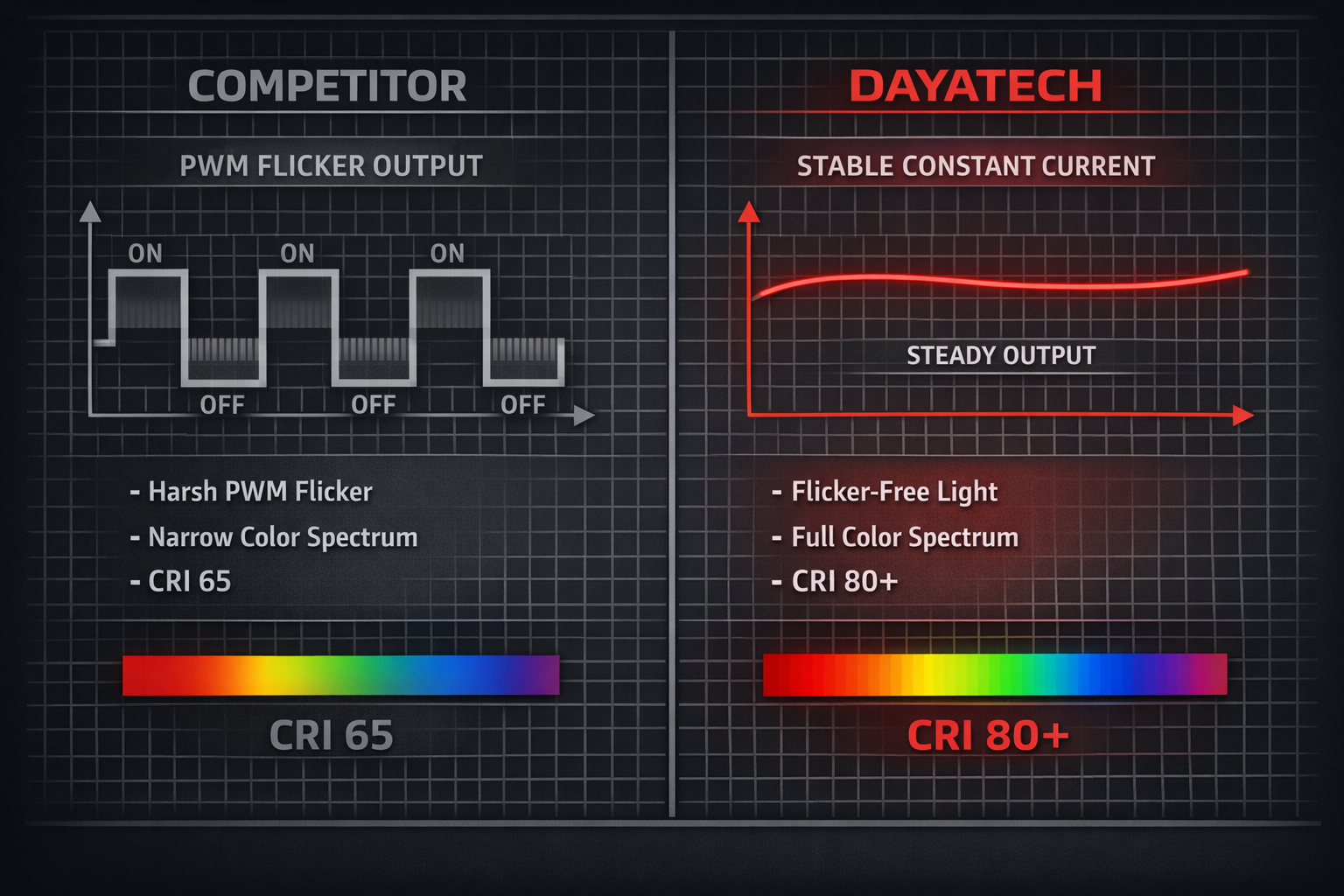

Real Light. Real Color. Zero Flicker. A constant-current LED driver paired with high-CRI chips and precision optics — certified against IEEE 1789 flicker standards and LM-79 photometric test reports.

How It Works

  1. Constant-Current (CC) Driver — A linear current regulator holds output current at a precise target (±2% stability) and dims by smoothly reducing that current. Zero PWM. Modulation depth under 5% at all dim levels, compliant with IEEE 1789 “no observable effect” category.
  2. High-CRI LED Selection — LEDs binned at CRI 80+, with R9 values above 50 for accurate red-tone rendering. Cheap lights use CRI 65–70, which distorts skin tones, wire color codes, and paint finishes.
  3. Optical Diffusion Layer — A frosted polycarbonate lens combined with a micro-prism diffuser spreads point-source LED light into a wide, even beam (120° flood) with glare index below UGR 19.
TrueBeam™ · Flicker-Free, Anti-Glare, High-CRI Light engineering diagram

Why It Matters

If you wire panels, paint cars, inspect welds, or match finishes — you can't do that work under flickering, off-color light. TrueBeam™ is the difference between “I can see it” and “I can see it right.” That difference shows up in your callback rate.

STEADYLUME

SteadyLume™ · 10,000-Hour Lumen Maintenance

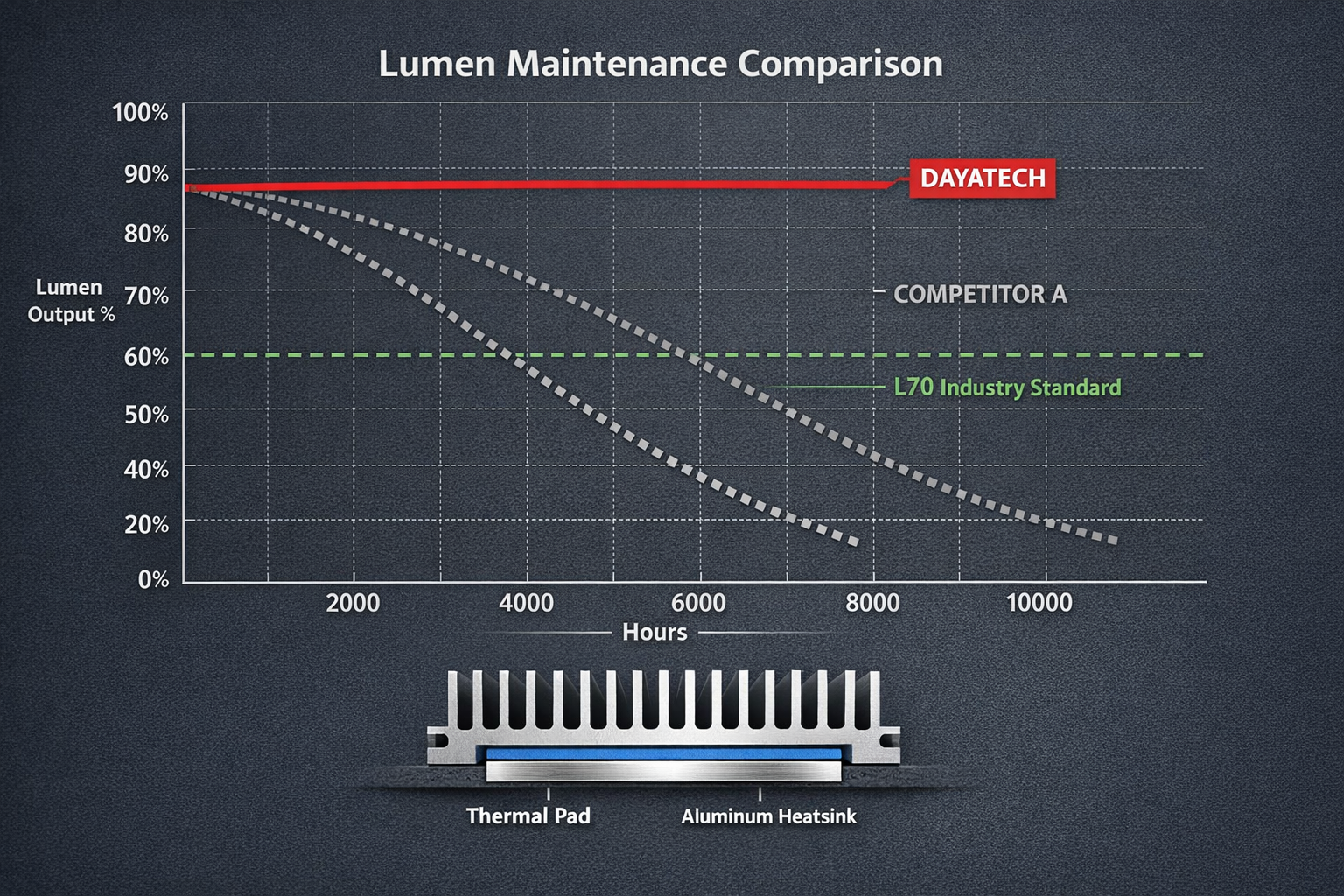

Hour 1 or Hour 10,000. Same Light. An integrated thermal management and LED-lifetime architecture that preserves at least 90% of initial light output after 10,000 hours of use.

How It Works

  1. Aluminum Heat Sink + Thermal Pad — Each LED module sits on a 1.5mm thermal interface pad mounted to a machined aluminum heat sink rated 15W/°C. Junction temperature stays below 85°C even at max output for 2.5 hours continuous.
  2. Current De-rating at Full Power — DAYATECH drivers run LEDs at 80% of rated current. Trading 5% peak brightness for 4× longer useful life.
  3. LM-80 Binned LEDs — Only LEDs certified to LM-80 testing standards, which requires documented lumen maintenance curves over 6,000+ hours. Combined with 2,000-hour burn-in sample testing, DAYATECH projects L90 at 10,000 hours.
SteadyLume™ · 10,000-Hour Lumen Maintenance engineering diagram

Why It Matters

A work light should last 5 years — not 5 months. Most competitors build lights that work great in year one, then fade. SteadyLume™ answers one question: will this light still perform the day you finally replace it? Yes. We built it to.

UniPower™ Technology

UniPower™ — One Light, Any Battery.

A patented mechanical-electrical adapter system that makes one DAYATECH work light run on 7+ major cordless battery brands without any external adapter, modification, or voltage conversion.

DEWALT 20V MAX · MILWAUKEE M18 · MAKITA LXT 18V · BOSCH 18V

UniPower Universal Battery Interface Diagram Three-layer adapter system: universal dovetail slot, dual-contact brass bridge, and 18.5V voltage normalization circuit accepting the four premium cordless battery platforms. INPUT · 4 PREMIUM BRANDS · 18–21.6V DC DeWalt 20V MAX Milwaukee M18 Makita LXT 18V Bosch 18V CORE LAYER 1 MECHANICAL INTERFACE — Universal Dovetail Slot LAYER 2 SMART CONTACT BRIDGE — Dual Brass Terminals · ≥ 0.8N +/− +/− LAYER 3 VOLTAGE NORMALIZATION CIRCUIT — Active Regulator 18–21.6V in → 18.5V stable rail out 18.5V REG OUTPUT · STABLE LED DRIVE · FULL LUMEN
Figure 1. UniPower™ three-layer interface. Input accepts 18–21.6V DC from the four premium cordless battery platforms (DeWalt, Milwaukee, Makita, Bosch); output is a stable 18.5V rail to the LED driver.

UniPower™ demo · Fits DeWalt, Milwaukee, Makita, Bosch batteries

How It Works

UniPower™ is a dual-contact battery interface engineered around the common 18V–20V Li-ion pack architecture shared by the four premium professional platforms. The system has three layers.

Mechanical Interface Layer. A universal dovetail slot geometry with spring-loaded retention clips accepts the physical form factors of DeWalt 20V MAX, Milwaukee M18, Makita LXT 18V, and Bosch 18V packs. No tool, no adapter, no plastic sleeve.

Smart Contact Bridge. A dual-contact brass terminal assembly auto-aligns with each brand's positive and negative terminal spacing. Internal spring tension guarantees contact pressure above 0.8N — well beyond the 0.5N minimum required for stable current delivery at full load.

Voltage Normalization Circuit. An active regulator accepts any nominal input between 18V and 21.6V (fully charged 20V MAX packs) and converts it to a stable 18.5V internal rail. Battery choice never affects light output or runtime curves.

Key Parameters

Compatible Brands
DeWalt · Milwaukee · Makita · Bosch
Input Voltage
18 – 21.6V DC
Contact Pressure
≥ 0.8N
Adapter Required
None
Patent
DE Gebrauchsmuster

Battery Compatibility

Already Have Batteries? Tap Yours.

DAYATECH lights run on the cordless tool batteries you already own. Tap any brand to see compatibility details.

Universal dock · 18V – 21.6V DC · No external adapter required

LED Engineering

Every Number Is Lab-Verified.

We publish our full LM-79 lumen test reports. Most LED work-light brands don't — we make ours public.

140

Lumens per Watt

Industry-leading luminous efficacy, verified by independent LM-79 testing. More light per watt means longer runtime.

12K

Maximum Lumens

Tripod model delivers 12,000 lumens — enough to illuminate an entire construction site or parking lot.

80+

Color Rendering Index

High CRI means true-to-life colors. Critical for electrical work, painting, and detail tasks where color accuracy matters.

TESTED TO LM-79 · THREE INDEPENDENT LAB REPORTS ON FILE

Built to Last

Engineered for the Job Site.

Every DAYATECH light is designed to survive the conditions where professionals actually work — contractors, electricians, outdoor crews.

IP65 (DY-363D)

IP65 Storm-Response Flagship

The DY-363D is rated IP65 — dust-tight and tested to withstand water jets from any direction, certified for wet concrete and storm response. The rest of the lineup is engineered for daily jobsite weather.

50,000 H

50K Hour LEDs

Premium LED chips rated for 50,000 hours of operation. That's over 17 years of 8-hour workdays.

5000K

Daylight Output

5000K color temperature matches natural daylight. Reduces eye strain during extended use and improves color accuracy.

0% FLICKER

TrueBeam™ Flicker-Free

The TrueBeam™ constant-current driver eliminates flicker completely. No headaches, no eye fatigue — even during 12-hour shifts.

Runtime Data

How Long Will It Last.

Four products. One axis. Real runtime measured with a 5.0Ah battery, plotted against brightness as a percent of each model's maximum. Higher capacity batteries extend runtime proportionally.

DAYATECH runtime vs brightness curves for DY-368, DY-363D, DY-363B, DY-363Z Four product runtime curves measured with a 5.0Ah 20V battery. X axis is brightness as percent of model maximum. Y axis is runtime in hours. 20h 15h 10h 5h 0h 0% 25% 50% 75% 100% BRIGHTNESS · % OF MODEL MAX RUNTIME · HOURS
Runtime measured with a single 5.0Ah 20V battery at 22°C. Tripod DY-368 dual-battery configuration doubles the runtime shown.
  • DY-368 · Tripod 12,000 LM
  • DY-363D · Cordless 7,000 LM
  • DY-363B · Foldable 4,000 LM
  • DY-363Z · Zoomable 3,000 LM
Verified runtime by mode · 5.0Ah 20V battery, 22°C ambient
Model Low Medium High Max
DY-368 Tripod 12,000 LM 1,500 LM 10h 3,000 LM 5h 6,000 LM 2.5h 12,000 LM 1.2h
DY-363D Cordless 7,000 LM 1,600 LM 10h 3,500 LM 4.5h 5,500 LM 3.5h 7,000 LM 2.5h
DY-363B Foldable 4,000 LM 1,000 LM 16h 2,000 LM 8h 4,000 LM 4h —
DY-363Z Zoomable 3,000 LM 750 LM 20h 1,500 LM 10h 3,000 LM 5h —
